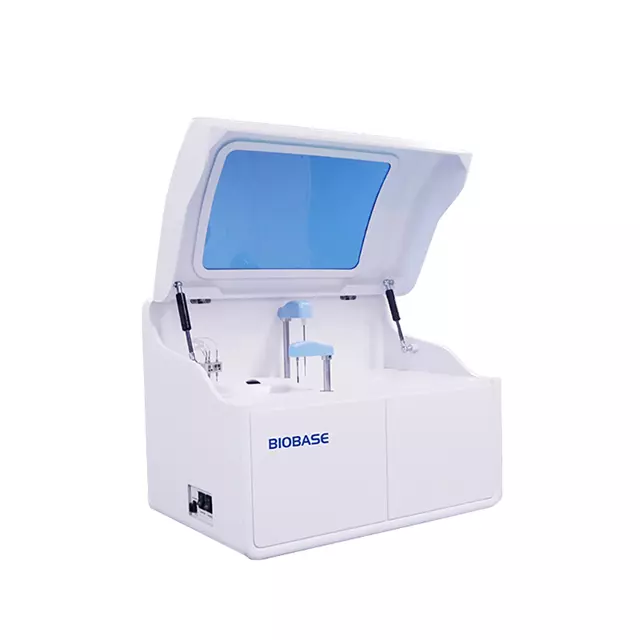

Auto Chemistry Analyzer BK-200

Chemistry Analyzer Products
0 Comments
bk200

Introduction:

It is used to quantitatively analyze the clinical chemistry of human serum, plasma, urine, cerebrospinal fluid and other samples. Do not use for other purposes.

Features:

1. 37 sample positions.

2. 28 reagent positions.

3. 48 reaction cuvettes.

4. 200 tests per hour.

5. Probe with anti-collision function, liquid level dectection function.

02
01

Technical Parameters:

ModelBK-200
Overall
Performance		Throughput200 tests/hour
Analysis MethodEnd-point, Fixed-time, Rate(Kinetic), Turbidimetry
CertificatesCE, FDA, ISO9001, ISO13485
Sample&Reagent SystemSample Positions37 sample positions
Reagent Position28 reagent positions
Sample Volume2~70µl
Reagent Volume20~350µl
ProbeTeflon coating, with anti-collision function, liquid level detection function
Probe WashingAutomatic washing interior and exterior
Reagent CoolingRefrigerated tray with independent switch
Reaction SystemTemperature Control37±0.2℃
Cuvettes48 reusable cuvettes, optical length 6mm
Mixer ProbeIndependent stirring
WashingAutomatic cuvettes washing
STAT FunctionYES
Optical SystemLight Source6V/10W halogen lamp
SpectrophotometryPost-spectral spectrophotometry
Wavelength340, 405, 450, 510, 546, 578, 630, 700nm
Absorbance0~3.0Abs
Calibration&QCCalibrationLinear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Logit-4P, Logit-5P
Quality ControlReal-time QC, Westgard multi rule, Cumulative Sum Check, Twin Plot(2D), Daily QC, Monthly QC
Data ManagementSoftwareWindows 7/8/10, 32 or 64 bit
LIS SystemBi-direction, support HL7 protocol
InterfaceLAN port access
PrinterExternal optional, multiple reporting mode available
Working ConditionsPower SupplyAC220V±10%, 50/60Hz; 110V±10%, 60Hz, 300W
Temperature15~30℃
Water ConsumptionDeionized water:＜5L/H
Humidity40%~85%
Size&WeightExternal Size(W*D*H)625*425*460mm
Net Weight36kg
Package Size(W*D*H)750*560*900mm
Gross Weight55kg
