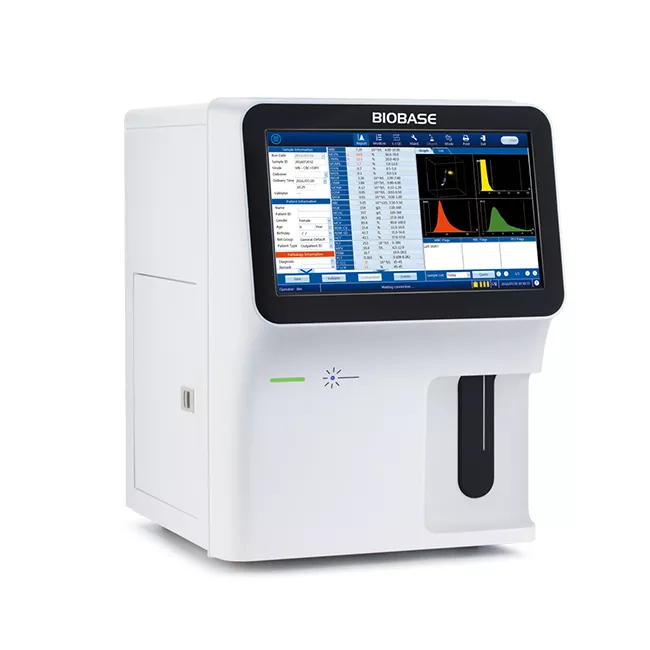

BK-6310 Hematology Analyzer 5 Part

Hematology Analyzer Products

0 Comments

Features:

①．Throughput 60T/H.

②．14 inch touch screen.

③．Tri-angle laser scatter + flow cytometry method + impedance method for RBC and PLT counting.

④．3D holographic scattergram displays the accurate 5 part differentiation of WBC.

⑤．Large storage capacity: 100,000 results(including histogram, scattergram, patient information).

Parameters:

Model	BK-6310
Throughput	60Tests/hour
Assay Items	5 parts, 29 parameters,3 histograms
Principle	Tri-angle laser scatter,Flow cytometrymethod, 3D scattergram analysis, Impedancemethodfor RBC and PLT counting, Cyanide-free method for HGB test
Test Mode	CBC mode,CBC+DIFF mode Venous whole blood, Capillary whole blood and Prediluted.
Parameters	WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT,PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%,BAS%,NEU#, LYM#, MON#, EOS#, BAS# 4 Research parameter: ALY%, ALY#, IG%, IG#
Performance	Item	Linearity range	Carry Over	CV
	WBC	(0~300.0×10^9)/L	≤0.5%	≤2.0%
	RBC	(0~8.00×10^12)/L	≤0.5%	≤1.5%
	HGB	(0~250)g/L	≤0.5%	≤1.5%
	PLT	(0~3000×10^9)/L	≤1.0%	≤4.0%
Sample Volume	CBC+DIFF mode≤20μl CBC mode≤10μl
Storage	10,000 results including histograms, scattergrams and patient information
Interface	4 USB ports, 1LAN port Bi-direction LIS, support HL7 protocol,Internal RFID reader
Power Supply	AC220V±10% 50/60Hz; 110V±10% 60Hz; 400VA
Package Size	670590790mm(WDH)
Gross Weight	53kg
ReagentPackage Size	320320290mm (WDH)
ReagentGross Weight	22kg
